Midwest Optical : BP590
Description
Midwest Optical Visible Light Bandpass Filter BP590
Available Models Include:
| BP590-25.4 |
| BP590-13.25 |
| BP590-22.5 |
| BP590-25.5 |
| BP590-27 |
| BP590-30.5 |
| BP590-34 |
| BP590-35.5 |
| BP590-37 |
| BP590-37.5 |
| BP590-40.5 |
| BP590-43 |
| BP590-46 |
| BP590-49 |
| BP590-52 |
| BP590-55 |
| BP590-58 |
| BP590-62 |
| BP590-67 |
| BP590-72 |
| BP590-77 |
| BP590-82 |
| BP590-86 |
| BP590-95 |
| BP590-105 |
Features
→Designed for use with commonly utilized LED light sources/UV-excited
→fluorescence wavelengths
→Bandwidth 80-90 nm (+/- 10 nm) FWHM
→Shields systems from unwanted ambient light
→Enhance contrast for improved viewing of desired features
→Improve resolution (chromatic aberration correction)
→Test to determine the appropriate lighting for an application
→Suitable for laser diodes
Specifications
Full Width Half Max (50% point) +/- 10nm: 550-620nm
Min Peak Trans: 90%
Surface Quality Scratch & Dig: 40/20
Mount Options: T=Standard Threaded Lens Mount; S=Slip-On Mount; C=C/CS-Camera Mount (M25.4); F=Filter, No Mount
Resources & Documents

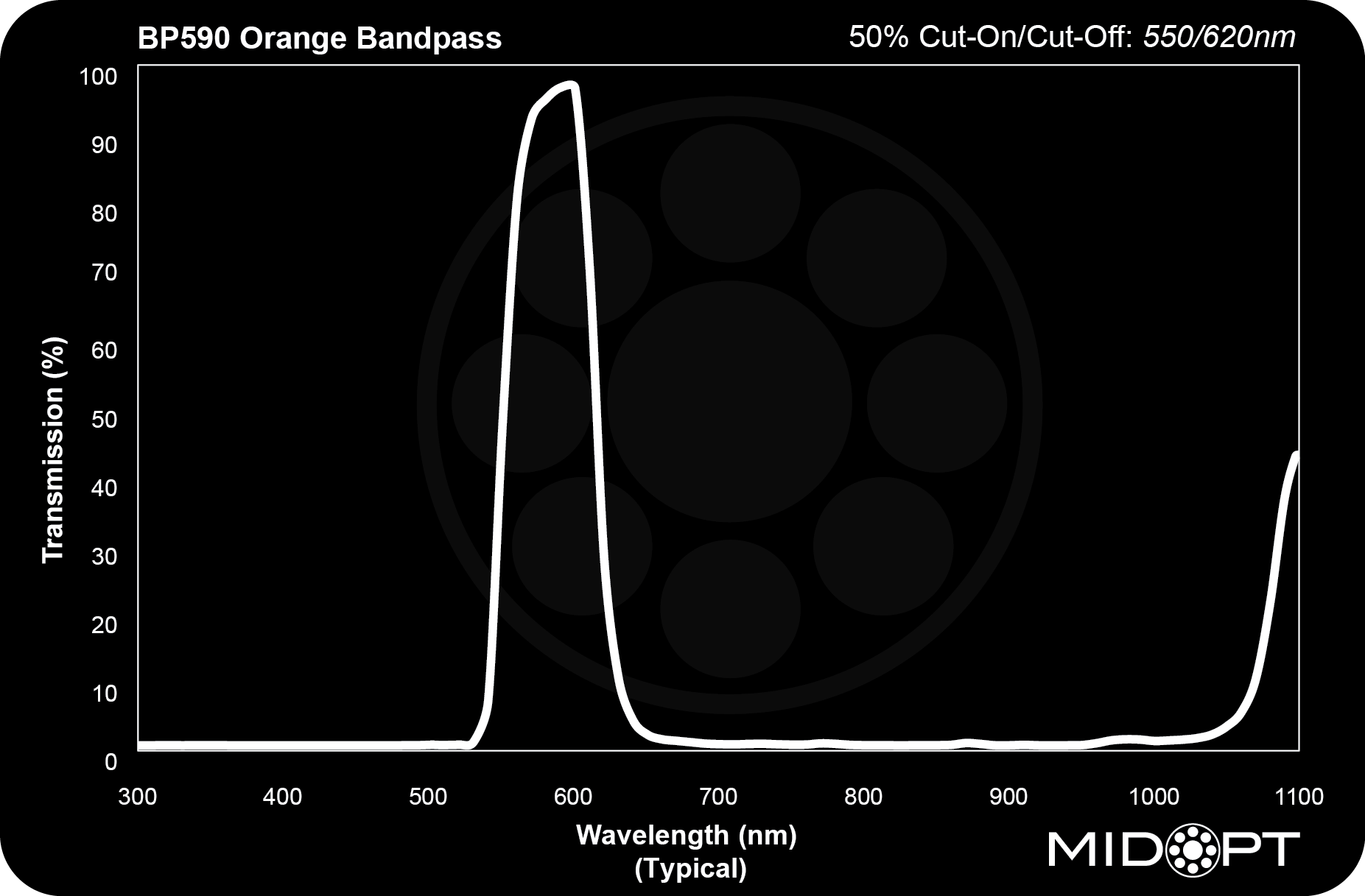

| midopt_bp590_curve.png | Curve Graph |
| midopt_new_products_web.pdf | Brochure |
